Foreword
It hasn’t been published for a long time. This time it was because I bought a qpad QH90 “same model†headset for the trouble, because the owner often uses the DELL u2312 monitor's plug-in. Every time I use it, the landlord puts my earphones on top of the soundbar to adjust the volume. As we all know, this headset uses the mic and headphone cable design (non-separation line), which leads to the access to the headset. Into the mic. If I plug in the mic, I have to plug the cable behind the host (and also unplug the 3.5 plug of the sound bar), or if I connect the headphones to the front panel, the problem of the egg hurts. I can't get into the game or full-screen software. Real-time adjustment, although adjustable through the keyboard, but the "scale" of the stage adjustment either the volume is too large, or too small. These problems have plagued the Lord, visiting the next forum and found that the AVerMedia GM310 Aegis game microphone feels pretty reliable and can solve a variety of egg problems. Hey!
〓Related parameters〓
1 Microphone: High-sensitivity Unidirectional condenser microphone x 2
2. External dimensions: 103 (L) × 103 (W) x 39 (H) mm
3. Microphone: High-sensitivity omnidirectional condenser microphone × 2
4. Power connection (power supply) support: USB bus power supply
5. Voice receiving distance: 60 cm
6. Sample rate: 48000 Hz
7. Frequency response: 50-20,000 Hz
8. Signal to noise ratio 69 dB (1 kHz/pa), maximum sound level 110 dB sound pressure level
9. Bit depth: 16 bits
10. Microphone sensitivity: -37 DBV
11. Weight: 130g
〓文开箱开
The appearance of the box is OK, the overall style is a bit European and American. Only the UV process highlights the CG diagram of the lower product.
On the back of the package, there is a Chinese character in the wood, and several major features are described in the figure below.
The design of the packaging box flipped, but it is very interesting, why do you use adhesive seal? Is it my turn or I won't turn it? After turning it over, it was discovered that the original was a "prop" bonus (the seal was to prevent the loss of the accessory).
Family portrait. AVerMedia GM310 Aegis game microphone, usb2.0 connection cable, magnetic metal nameplate, advertising pages, brochures, warranty cards, etc.
"props" bonus! Workmanship is not bad, aluminum should be, the back of the magnet can be sucked on the chassis.
Take out the main body of AVerMedia GM310 Aegis game microphone product.
Top view. The style is biased towards European and American styles, and it is more mad. The key function design is also relatively simple and practical. The upper circle LOGO is an electrodeless adjustment knob. The silver button on the right side is a mute button press.
Front underside. The left and right hole patterns are radio capacitance mic. Of course, this part is a plastic material, and if it is metal, you can add points.
Left side. There is only one knob on the top, and the knob emits a circle of light.
Right side. This one-key mute button is not made of aluminum, but is a plastic mold, making a brushed metal effect.
Positive top. Back mirco-usb interface, noise suppression sound hole, DSP technology switch.

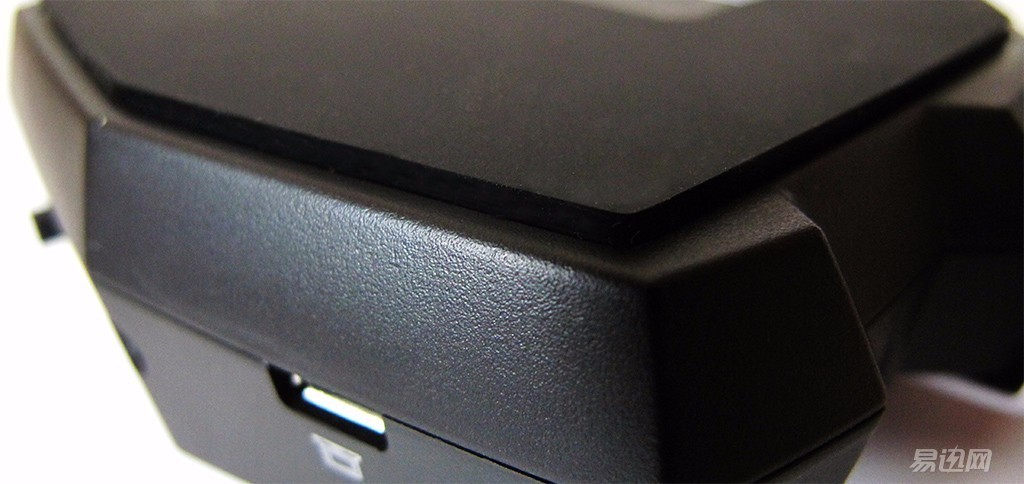

Underside. A large piece of non-slip rubber acts as a base.
3/4 on the left, look at the overall angle for several angles.
3/4 right.
〓Details show 〓
It can be seen that the AVerMedia GM310 Aegis game microphone is not very big.
The red part of the lower part of the sound collection system is a dust-proof design with a red cloth weaving net, and it is carved with cutouts.
Upper volume knob. An intuitive volume adjustment knob has the advantage of being able to see if you have a sonic boom when the device is listening and avoiding too little or too much volume. In normal operation, it is a green light strip. If there is a pop noise (when the sensitivity of the sound is too high), the indicator strip will turn orange or red. The damping of the knob feels like a lot, and it is "light".
The brand LOGO is still electroplated and not aluminum.
The silver button on the right is a mute button (the button LED icon will light red when mute is on). Such a "gigantic" can be regarded as the boss key. When you do not want to be heard by the other party, you can press it very quickly.
The back DSP switch, when using AVerMedia GM310 Aegis game microphone, must open the switch. About the technical principle of DSP can see Baidu Encyclopedia, ↠Me
The bottom non-slip rubber is very thick. It's not easy to move easily on the desktop.
AVerMedia GM310 Aegis Gaming Microphone cable connection uses the more common USB2.0 + Micro USB design. Shiny gold plated wood! The cable is a braided cable that is relatively rigid and thick.
〓Power on the computer
Put the AVerMedia GM310 Aegis game microphone in a good position (the official recommendation is 60cm away from the main audio source), and plug in the cable. We can install it in the drive.
Drivers
For customers who do not understand the product, it is a very thorough manual.
AVerMedia GM310 Aegis game microphone driver can be downloaded from AVerMedia, Portal
Download a good EXE program directly double-click to install.
Driver loading, of course, is now supported by the most compatible win10.
After loading, double-click the desktop driver icon.
Self-test process.
Reported error, be sure to turn on the DSP function switch on the top of the host microphone.
After it is turned on, the firmware version is updated immediately after "say nothing".
More!
After the update is complete, double-click the driver again to perform the setup wizard.
Step by step is good. Foolish operation.
〓Test Effect〓
Normal use, this product's biggest feature is not only a mic is so simple, the most important is that the GM310 can work through the front of the sound mic and the back of the noise mic at the same time, using DSP on the principle of audio data processing background "interference sound "Noise cancellation, guarantee the main sound source content for recording. Here can be popular science, the traditional mic microphone head has a heart-shaped and O-shaped, roughly speaking, these two are more common. The principle is that it is designed by "strengthening" a certain direction (orientation) when the microphone is sounding, thereby "suppressing" or realizing the need to "shield" other ambient noises. Then the GM310 is using DSP technology, the device through the content of the collected digital signal "filter", enhance the main content (the main sound source), and then the data compression and other processing, the final output meets our needs Content (primary sound source). The above-mentioned "noise reduction" is not the "background noise" generated in audio hardware devices. This is two different concepts. I hope that everyone will not confuse them.
By adjusting the knob, when the sound is too loud, the light strip at the bottom of the knob will light orange or red to indicate "pop" sound, that is, the sensitivity of the sound pickup mic is too high. At this point, just adjust the knob to the right position.
Open boss key. How much I personally hope this button is made of aluminum!
During the test, I purposely tested it. If it is playing background music from a computer speaker and simultaneously chatting with the other party, AVerMedia GM310 Aegis game microphone can perfectly block the background music from the computer, only Play normal conversational speech to the other party. However, if you play music through other players, AVerMedia GM310 Aegis Gaming Microphone will still collect these music content and play it to the other party.
〓 〓 〓 〓
Since then, the problems plaguing the Lord in the foreword have not been a problem. They are happy to play the game! A word does not match the game! This time did not dismantling, one is worried about warranty issues (the key is not to find screw holes ah)! I can't live without you.
At the end of the game, you can enjoy the opposite side of the show, just play and forget the screenshot! GG!
