Everyone is happy for the new year! After the new year, the new machine was installed. However, after the age of the people is over, there will be some feelings and memories of the past. This time took the opportunity to add a very like the elements of the team: AC Milan.
Let's start with a few words, then Serie A status is equivalent to the current Premier League, known as the "small World Cup", players like clouds, when the "seven sisters" for a championship to be difficult to understand, the suspense to win full. Among them, AC Milan is my favorite team, but the age is not so old, the era of the Dutch Three Musketeers did not catch up, and I was most impressed by about 2000 AC Milan.
At that time, AC Milan's lineup was really "awesome in the frontcourt and not bad in the backcourt": the striker had not been deceived by fellow villagers, and shelved the state of Shevchenko; the midfield had the best Kaka, the classical Rui. Costa, Pirlo, Gattuso, etc.; defensive lineups are Cafu, Nesta, Stam, Maldini and Gatekeeper Dida, in addition to Inzaghi, Karadze, Ambrosi. Neil, Rivaldo and some other players are not as bad as the cosmic team in their heyday.
However, things are not right now. Now Serie A is in a downturn. Even as I watch the Premier League, more and more people, after several hesitations and twists and turns, Berlusconi finally agreed to control himself for 30 years and obtain numerous brilliant AC Milans for sale. For Chinese-funded groups. However, this Chinese-funded purchaser named China-European Sports Investment Management Changxing Co., Ltd. is still very mysterious. It does not know what the boss on the back has come from. It is good to invest 350 million euros in the next three years to help AC Milan return to the top of Europe. "The promise does not know when it will be honored. But anyway, AC Milan has brought me a good time, so I still give good wishes to Milan and to Milan!
In order to commemorate this wonderful time, this time took the opportunity to join the elements of Milan, and the red elements are also very suitable for the atmosphere of the New Year. This is to share with you.
Box ah, the specific hardware is as follows:
CPU: i7-7700K
Motherboard :MSI Z270 GAMING PRO
Graphics: GALAXY GTX 1060 GAMER 6GB
SSD: Plextor M7VC 256G
Memory : GALAXY GAMER DDR4 2400 8GX2
Chassis : Herd 416PSTG Chassis Black Edition
Power supply: Xingu ZP500P full module power supply
Radiator: ID-COOLING Frostflow 240L-R Integrated Water Cooled CPU Radiator (Iridium Lighting Effect Red and Black Edition)
Monitor: HuntKey D2461WHU/DK
Keyboard : Donkey 612 Kayhoo mechanical keyboard black green axis
Mouse : Donkey 125M Lightning Black Mouse
=======================
[Hardware and peripherals display]Although intel squeezing toothpaste every year, but buying a new one does not buy the old, or to start with the flagship of the new Kaby Lake architecture: i7-7700K, years ago boxed it is still difficult to buy, so direct TB scatter, i7-7700K with 14nm Process, silent frequency 4.2G, Turbo 4.4G, single core Turbo 4.5G.
I usually do not want to mention the so-called "cost-effective", but also that "cost" is not the cheaper the better, but as an ordinary person, the budget is still there, so the goal is to strive to install a limited budget The appearance of satisfaction, the host can use sex.
First of all, the following accessories are not luxury, but this does not mean that the appearance of the host will be very low, I try to make the overall hardware style and color match, so that the appearance can also meet my requirements.
Let's start with the motherboard. Since U is new, the motherboard is certainly the latest Z270.
Motherboard is MSI's Z270 GAMING PRO, the color is mainly red and black, the details of the memory installation order marked, it is convenient not to read the manual; if a failure occurs, the motherboard led on the side of the instruction is also helpful.
MSI Z270 GAMING PRO Motherboard Supports I7-7700K Gaming Gaming Board 1299 Yuan Jingdong Direct Link I/O interface: 1 PS/2 interface, 2 USB 2.0 interfaces, 4 USB 3.1 Gen1 interfaces, 2 USB 3.1 Gen2 (each of Type-A and Type-C) interfaces, and Gen2 interface provided by the ASMedia chip It is said that it can achieve 2 times the transmission speed of USB 3.1 Gen1, 1 Gigabit network interface, 6 audio interfaces, and the video output interface includes one HDMI and one DVI-D port.

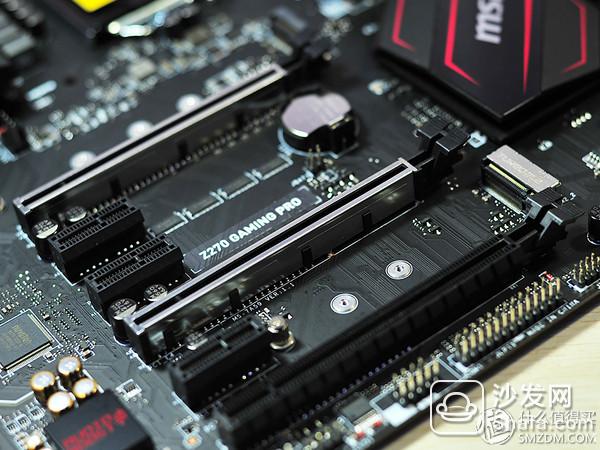

The Z270 GAMING PRO PCI-E slot provides three PCI-E 3.0 x16 slots. Two of them are protected by metal armor. If a relatively heavy graphics card is installed, it can effectively prevent the graphics card from crashing into the slot. Three PCI-E 3.0 x1 slot expansions.
The motherboard has 6 SATA 6Gbps ports, four SATA 3.0 ports with 90 degrees rotation, and two upright SATA ports. This generation of motherboards has basically no view of the SATA Express interface and seems to have been abandoned. In addition, the front USB 3.0 interface is also rotated 90 degrees, the interface becomes a horizontal position.
Audio has MSI's audio system AUDIO BOOST, equipped with audio capacitors next to it, and the audio area also has PCB cutting lines.
The biggest change in the Z270 motherboard is that PCI-E 3.0 adds four more, so it provides two M2 interfaces. One of the motherboard's M2 interfaces also has metal armor protection.

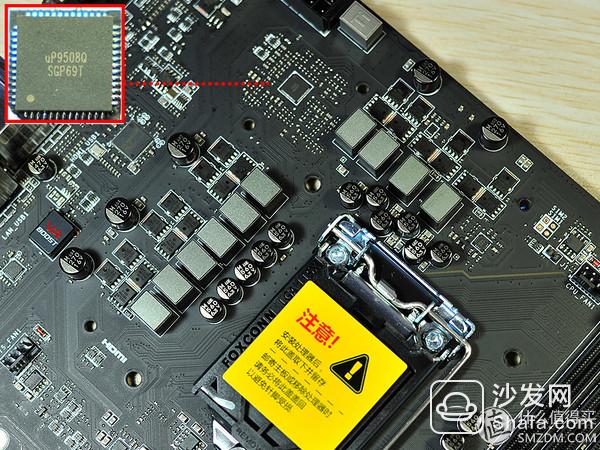

The Haswell architecture CPU integrates the power supply system FIVR, which simplifies the design of the motherboard, but results in increased internal heat and power consumption of the CPU. Skylake architecture began, the CPU canceled the FIVR fully integrated voltage regulator module, so that the power supply responsibility is borne by the motherboard, so the power supply design and materials for the overclocking is important again.
Counting inductance is a total of 10 items, but now basically no motherboard does not use phase, PMW chip is uP9508Q, supports 4 phase power supply, and then through the phase into 8 phase, there are 2 phases no accident should be nuclear display and IO power supply, VCCSA power supply and the like.
Memory GALAXY GAMER DDR4 2400 8G, 1.2V operating voltage, timing 16-16-16-36-2T. Red and black aluminum heat sinks with LED breathing lights also fit the theme.
Galaxy GAMER DDR4 2400 8G desktop memory light bar breathing memory red 399 yuan Jingdong direct link There are "M" logos on the left and right sides of the memory. Don't know what they represent. I don’t know why I don’t use “Gâ€
This memory is not expensive, and the color of the heat sink and light can be changed by changing the kit. If the overall color change later, you can continue to use, of course, the kit is also to spend money to buy.
In addition to the audio section and the bugled light, the heat sink logo has no lights. If you want lights, add +500 to select Z270 GAMING PRO CARBON.
Because the 7700k is still the same process as the previous generation, the same thermal grease, and from the Skylake generation, the PCB of the Intel processor has thinned, Kaby Lake this generation, the thickness is still the same as the previous generation. Therefore, it is still a bit scared to focus on the cold air, water safety point (of course there is the risk of leakage).
Choose the inexpensive ID-COOLING Frostflow 240L-R integrated water-cooled CPU cooler (Iridium Lighting Effect Red and Black Edition)
This 240 water-cooled radiator, thin row design, 14 waterways. There is a circle of LED marquees on the cold head, and the LED lights will run in a circular motion. So it is named as a comet light.
ID-COOLING Frostflow 240L-R Integrated Water Cooled CPU Radiator Full Platform Iridescent Lighting 240 Row Red & Black Edition 359RMB This FROSTFLOW 240G is an air-cooled + water-cooled hybrid CGPU (graphics card) water-cooled system, AIO integrated solution, To separate the troubles of water-cooled installation and maintenance, this is very suitable for beginners. The solution is very good in design, can take care of the video card in series, to bring users a complete water cooling system, can handle up to TDP300W heat, effectively reduce heat. Comes with 240MM cold row and the fan looks eye-catching Jingdong direct link View Encyclopedia The cold head part adopts the pure copper base; the water pump adopts the ceramic bearing, the power is 3w, the speed is 2000 RPM, the head is 1.2m, and the flow rate is 96L/H.
Two fan speeds 800-1500RPM, 4pin temperature control, maximum air volume 85CFM, is also used red and black color, 4 corners with cushion.
Since the monitor is only 1080p, the graphics card selects the mainstream GALAXY GTX 1060 GAMER 6GB.
The graphics card is still red and black, three 80mm fans are red (3 heat sinks inside the heat sink) and the rest are black. There are three full-color adjustable LED lights around the fans, using GALAXY's own software, can be RGB color.
GALAXY (GTX) GTX 1060 GAMER 1556 (1771) MHz / 8GHz 6G / 192Bit D5 PCI-E graphics card 2049 yuan This is the GALAXY GTX 1060 GAMER graphics card is a non-public video GALAXY products, mainly for mainstream gamers, using non-public design ,The core frequency is increased to 1771MHz, three fan non-public thermal module, ColorMax heat sink supports 16 million RGB dimming, non-public PCB design + Gamer custom backplane, 8+6pin power interface, interface DP*3+HDIMI* 1+DVI* Jingdong direct link to encyclopedia The current mainstream graphics cards are almost embarrassed without backplanes. The backside of this card is a back plate of aluminum alloy material, and some of them are designed to improve heat dissipation performance.
The power supply interface part uses a 6+6 pin power supply interface, which is doubled compared to a 6-pin version of the public version. In addition, a certain distance is reserved for the two power supply interfaces to facilitate the insertion of the power supply interface. However, I think this distance is a bit large and may destroy some aesthetic effects.
The video interface is the same as the public version, one HDMI, one DVI, and three DP interfaces.

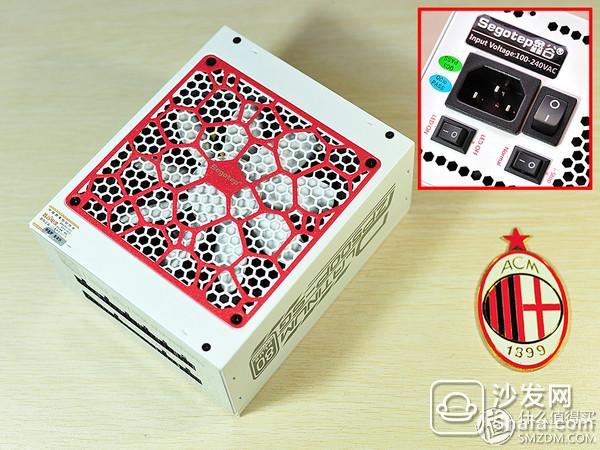

Power is not too provincial, after all, the power supply to provide energy for the entire host, starting with platinum licensing Xingu rated 500W ZP500P full module power supply.
The topology of the power supply is LLC+DC-DC, and the rated power of the source is 500W. Besides the independent power switch, the power supply interface has LED switches and I-STOP smart hover settings (fan stall function).
Segotep rated 500W ZP500P platinum full module power supply (Platinum certification / stalled fan iStop / full module interface / custom braided wire) 599 yuan Xin Gu ZP500 is a standard ATX specification power supply, white appearance, cable is red. 80PLUS Platinum Certification, typical load conversion efficiency of 94%. With full module design, useless cables can be completely removed, the traces are simpler, and the rated power is 500W. Japanese solid state capacitors and inductors, 14cm quiet fan, support intelligent start and stop. Jingdong direct link to encyclopedia The single 12V output of the power supply has reached 41A, the 50% conversion efficiency of the media evaluation at 110V has reached about 93.3%, and the 50% efficiency at 230V has reached 94.25%, achieving the platinum certification
The use of red braided nets wrapped in wire mesh 18AWG pure copper power supply line, which also choose this power supply is an important reason, because if you want the ordinary full wire module power supply, to achieve the best overall effect is also need red Custom line, in the TB to do this set of lines also have 200-300 blocks, so so count, then choose this power is very cost-effective.
The power supply's LED light is not on the fan, but on its module output.
SSD has recently increased its price, and the mainstream level is TLC SSD. Of course, the Z270 uses the M2 interface, PCI-E protocol SSD can play the maximum performance, but the SSD is not a video card after all, although the performance is much stronger, but not It must be felt, so the decision is still to save a little in this area.
Start with Plextor's TLC SSD: M7VC 256G, which is also a TLC SSD, three-year warranty, the horse brand control, Toshiba 15nm TLC flash memory. The shell is made of alloy material. After being processed by metal wire drawing process, the color of Saohong is also in line with the overall color matching.
There is also a block of 1TB mechanical hard drive, of course, which is left over before. There are important learning materials left for you to understand.
Plextor M7VC 256G SATA3 Solid State Drive 639 yuan 15nm TLC particles Jingdong direct link View Encyclopedia Red and black chassis found and found found: chasing wind 416PSTG black and red. Compared to the regular version, in addition to the red and black color scheme, the side panels on one side are also upgraded to tempered glass.
Herd (PHANTEKS) 416PSTG Black and Red Tower Chassis (ATX tempered glass mute version / RGB light control / adjustable speed noise / support 280 water-cooled) 499 yuan Jingdong direct link On the back of the chassis, there are 7 PCI slots. At the same time, there is an auxiliary fixed east side that can be moved laterally.
The air inlet at the bottom of the chassis has a dust-proof net design that can be removed.
Non-ventilated top cover (with silent cotton) and dust-proof net are available on the top and are all magnetically fixed.
The power button is in the middle, the I/O port is on the side, and there are two USB 3.0 and headphone headset jacks.
The fan speed control, light control and reset button are marked on the front, but the buttons are on the bottom.
The side panels and the front panel are removable: the steel side panels have a muted cotton. There is also a muted cotton inside the front panel, and there are two dust filters on the upper and lower parts that can be removed.
Chassis skeleton structure:
The rear of the chassis supports 12cm fans; the top supports dual 12/14cm fans; the front can be equipped with two 12/14cm fans or cold rows. If you remove the bottom 3.5-inch disk tray and the upper cover, you can install 3 12 fans. Or 360 cold row. In addition, LED light strips are pre-installed at the bottom.
There are four red chasers logo plastic plates on the front, which can be mounted after the removal of the hard drive bracket, but this bracket is not standard, have to spend money to buy.
CPU radiator hole is still relatively large, it should be able to install the motherboard and then install the radiator, the official introduction to support 170mm radiator, the front is not equipped with optional hard disk frame, the length of the graphics card is not the courage.
The display is not a big Dongdong, choose the old mechanical and electrical manufacturers: HuntKey, the new monitor introduced - D2461WHU / DK, before the JD's pre-sale price is still very attractive.
Display black color, black metal frame, 23.8-inch ADS panel, ratio of 16:9, wide viewing angle, no flash, 98% sRGB color gamut, ultra-thin 7.7mm thick body; comes with USB charging interface.
Huntkey D2461WHU/DK 23.8-inch U with USB charging ADS wide viewing angle 7.7mm thick HDMI interface does not splash screen monitor 899 yuan never thought a monitor actually let my socket eat gray in the side of the direct link to Wikipedia The upper part of the back is made of metal, probably with good heat dissipation and no openings for heat dissipation.
The lower part is a plastic material, a slight reduction, the video interface is also here, only one HDMI interface, a VGA, but also a bit less.
The screen is indeed very thin, and the amount of 7mm is more, and it is almost the same as the propaganda. The overall feeling is OK. Of course, it is also subject to the cost, and the original 8bit panel is not used.
The base is made of plastic material. After all, the price is here. Two USB charging sockets are located on the left side of the base: a 5V1A, a 5V2A, and they are all marked on the side.
Peripherals, mechanical keyboard is now so cheap, there is no reason not to start, choose the domestic product - donkey 612 Kaihua hooves mechanical keyboard black yellow green shaft, green shaft as a mechanical keyboard, the most mechanical taste, and Kaihua Qing axis The feel is also very close to the cherry.
The standard 104-key layout of the keyboard, narrow border design, both sides of the aluminum side, the shell material is frosted plastic, bare shaft design, lined with steel plate.
è´æˆ‹é©¬æˆ· (james donkey)è´± Donkey 612 Kaihua hooves mechanical keyboard black and yellow green shaft 299 yuan Jingdong direct link The Fn key plus F1 to F12 are commonly used functions for multimedia applications, keyboard brightness adjustment, lock keyboard, and the like.
There is an English Logo on the side of the aluminum alloy on the left side of the left side. There is nothing but this embellishment. It is very simple.
The back of the keyboard is made of ABS plastic material with a product nameplate in the middle.
The side of the aluminum alloy extends to the bottom and forms four corners. Four black rubber pads are provided to prevent slipping. Plastic feet are embedded under the feet on the upper side.
The keyboard's cable is made of nylon braided wire and is 2 meters long. It is also equipped with anti-jamming magnetic ring and gold-plated USB interface.
The height of the keyboard is about 3 cm. The overall level is relatively high. The slope after opening the bracket is more suitable for long-time typing applications.
Pull down the keycap with the puller, you can see is the green axis of Kaihua, the long key uses the design of the satellite axis; the keycap is made of ABS material, using a two-color injection molding process
The mouse is also the same brand: è´±Donkey 125M lightning black mouse, equipped with PMW3325 chip, left and right keys used 20 million times Omron micro switch. The resolution is still quite high, to 5000 DPI, the maximum refresh rate of 4000FPS, the maximum acceleration of 20g, image processing capabilities 100ips, of course, the parameters just listen to it, the important thing is the application of the feeling, of course, I do not have to open the 1080 resolution With a large resolution, there was no floating phenomenon. As a 100-plus-piece mouse, the microswitch was crisp and the feedback was clear. The performance was fairly good.
è´æˆ‹é©¬æˆ· (jamesdonkey) è´±Donkey 125m esports gaming mouse Wired mechanical cyber cafe metal macro programming lol è´±Donkey 125M Lightning Black Mouse 129 yuan Jingdong direct link The surface of the mouse uses a skin-like treatment process. There is a fine matte sensation. There are two side keys on the left side. In fact, there are still other keys behind the wheel to adjust the DPI. Therefore, the mouse is a 6-button design.
The bottom of the metal aluminum alloy material, metal stamping one molding, is said to introduce the super sports car metal chassis design philosophy, looks like a very tall.

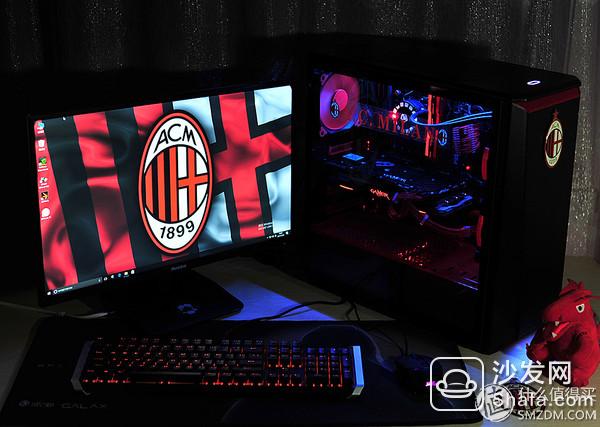

Now that the installation is very simple, the process will not be shown. Let's look at the results directly.
Topline effect.
Join the elements of Milan
The host did not pursue the light pollution effect of killing Matt too much, but after all it was a side-by-side chassis, it still needed a little light.
Milan LOGO on the glass side plate
Internal details
Internal details
The lighting effect of the video card is actually RGB adjustable.
The power supply's own clip, looks like a material like silicone, it is not easy to break.
Peripherals keyboard is not driven, the mouse can be installed JamesDonkey cloud drive, automatically identify the mouse model after installation and registration, you can customize the editing of the five buttons in addition to the left button; you can also set the DPI, rate of return, pointer speed and wheel speed; Tail lighting effects (Chang mode, breathing mode, colorful loop), light speed, brightness level, and backlight color.
On the left side of the mouse, I added a Milanese metal sticker.
The keyboard light color is only yellow, the mode can only adjust the light intensity and breathing effect, or it seems a bit single.
After all, is the z270 motherboard, how can we not play overclocking? Let's take a look at how this TB flake constitution is!
MSI graphics BIOS, if used MSI motherboard will be familiar with, compared with previous generations, there is no big change.
It is said that kabylake can be overclocked than skylake, and the FIVR of kabylak and skylake CPU is separated from the CPU, so there is no longer a RING voltage, and the setting becomes simpler. First, set a small target: 5GHz, and set the BIOS voltage to 1.4v. If the Ring Multiplier is also set to 5GHz, you can boot, run the test blue screen, and then fall second, Ring frequency down to 4.8GHz, you can run the test. It is estimated that the voltage can be increased by about 0.03 and can double the 5GHz, but the temperature can not hold it for a long time. Maybe it is also my constitution is not very good.
Even under 1.4v, 5GHz conditions, running the test software for a long time, the temperature is over a hundred, will also be a bit down, anyway, now the CPU performance is also excess, and in order to long-term stable use, I dropped to 4.8GHz frequency, in addition due to Ring The frequency multiplier does not increase the performance greatly, so the setting is automatic, the BIOS voltage is set to 1.22v (later it rises to 1.23v) to complete the test, this voltage value is good, it seems difficult or Ring times Increased frequency.
The test of CPU performance has been done at the three frequencies.
International chess Commonly used running software, the test is multi-core performance, but this product is not sensitive to the new instruction set, resulting in new U and old U out of the same score.
CINEBENCH R15
The test is also multi-threaded performance.
In the CPU clocked at 4.8GHz, some graphics performance tests were done. The frequency of this GALAXY GTX 1060 GAMER 6GB is also slightly higher than that of the public version, so the running score is higher.
3Dmark11
3Dmark
Time Spy with DX12 support
Measured a few games, perhaps more meaningful. In short, the performance of the GTX1060 is no problem for 1080 resolution games.
Install a new machine first come a high live football
Although there is no luxury hardware, but the final effect of the whole machine I am still very satisfied, also add their own feelings elements, can be considered a personalized host!
There are some new Intel Kaby Lake performance improvements, but don't expect too much and the temperature is still an old problem. However, if it is not super RING, it looks like it is better than skylake. The number of PCIE channels provided by the motherboard has increased, and vendors have also provided a set of M.2 interfaces. High-players can play with the performance of storage hardware. In today's hardware homogenization, each product is still in the accessory performance, color matching, color value, software, etc. play a lot of tricks. Players can move their minds again, and they can pretend to have a very good host. This is also one of the charms of DIY. For players, it's good to be happy. Once again, wish everyone a happy New Year!
